V31 Replacement Windows

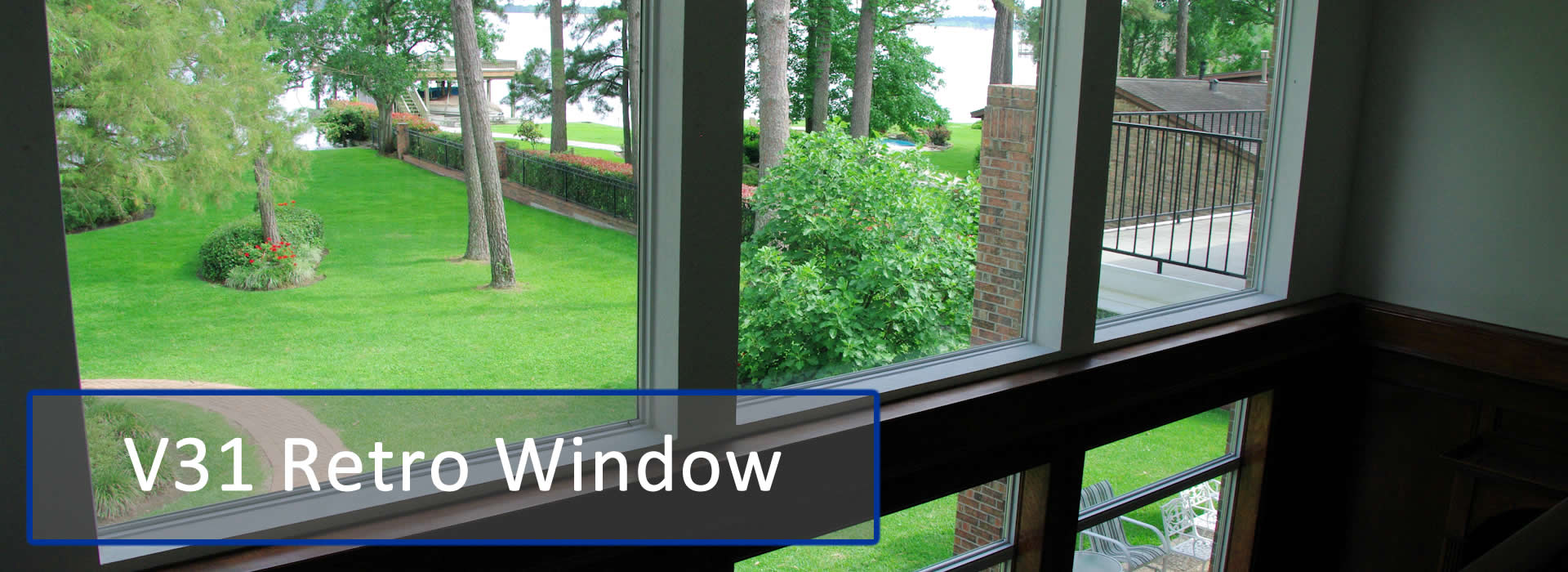

V31 Retro Series Vinyl Windows for Installation in Dallas / Fort Worth

V31 replacement Windows

Traditional architectural styling increases both beauty and durability.

• Sleek, low profile frame design increases both your viewing and light penetration.

• New Construction nailing fin for easy installation. Removal optional.

• 3/4" divided lite grids fit between the layers of glass.

• 2 5/8" frame depth to fit any standard window jamb.

• 3/4" OA insulated glass utilizing Low E3 double strength glass provides superior thermal insulation.

• Dura Spacer glass utilizes warm edge technology for increased energy savings.

• Multi-chambered, aluminum-reinforced center bar and lift rail for extra strength.

• Heavy, duty, stainless steel, constant force balance system allows the sash to remain open in any position.

COLOR OPTIONS

TOUGH COLORS AND FINISHES THAT ENHANCE YOUR HOME’S BEAUTY

We understand that it’s also important for a window frame, even if it’s the most energy-effcient available, to look attractive and add style to your home.

Standard interior and exterior colors are White, Almond or Clay ordering smooth clean lines to your home’s design.

Placeholder Picture
Placeholder Picture
Placeholder Picture

Optional pre-finished Super Hard Sytrene Color Cap exterior color. Bronze exterior available over white or clay interior.

Placeholder Picture

SUPER HARD SYTRENE COLOR CAP (SHS COLOR CAP)

Our SHS Color Cap is a breakthrough performance of formulation acrylic-styrene-arcylonitrile that is co-extruded and thermally fused color layer. SHS Color Cap is much more resistant to color fading, chalking or scratching than other products used with vinyl in the manufacturing of windows and doors. It’s especially suited for outdoor commercial and residential applications for beauty that lasts.

Features and Benefits

Long-lasting colors reflecting 78 percent of infrared light will
not crack, chip, cake, chalk or delaminate.

450 percent thicker than typical paint layers and 12 times
harder.

Highly scratch-resistant color layer handles jobsite abuses
better than paint, saving time and cost.

Profile dimensional performance and color retention are
backed by our industry leading warranty.

Co-extruded, thermally fused acrylic color layer provides
superior surface durability.

Full family of Single Hung, Single Slider, 3-lite
Slider and Picture Windows.

Single Hung Window

Single Hung Window

• Dual Sweep Lock. Exceeds forced entry requirements.
• Double strength glass is standard for better thermal performance and sound reduction.
• ¾” OA Insulated glass “package” standard.
• Dual weather-stripping.
• Full 1 '/8" integral nail fin (removal option) .
• 2 5/8" Double wall frame for increased rigidty
and thermal performance.
• Constant force balance standard.
• Integrated straight, bay and bow mull available .
• low E3 Double Strength glass standard.
• lock and meeting rails reinforced.

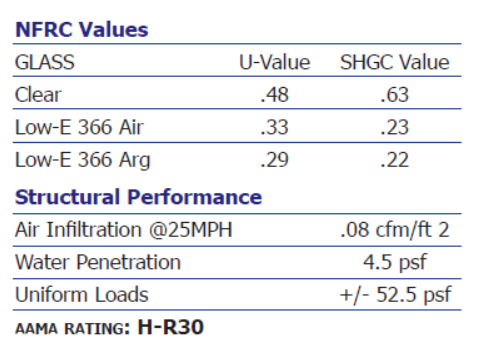

Single Hung Window Specs

Picture Window

V25 Picture Window

• ¾” OA Insulated glass “package” standard.
• Double strength glass is standard for better thermal performance and sound reduction.
• Full ½” integral nailfin included (removal optional)
• Dual weather-stripping.
• Full span reinforced interlocking sashes.
• 2 5/8" Double wall frame for increased rigidity and thermal performance
• Integrated straight, bay, and bow mull available.
• Optional two piece field mulling system and heavy duty mulls available.
• Tandem brass rollers for erase of operation and durability.
• Low E3 double strength glass standard.

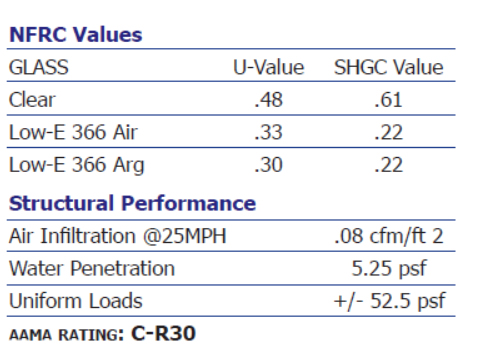

Picture Window Specs

Single Slider

V25 Picture Window

• ¾” OA Insulated glass “package” standard.
• Double strength glass is standard for better thermal performance and sound reduction.
• Full ½” integral nailfin included (removal optional)
• Dual weather-stripping.
• Full span reinforced interlocking sashes.
• 2 5/8" Double wall frame for increased rigidity and thermal performance
• Integrated straight, bay, and bow mull available.
• Optional two piece field mulling system and heavy duty mulls available.
• Tandem rollers for erase of operation and durability.
• Low E3 double strength glass standard.

Picture Window Specs
