V25 Replacement Windows

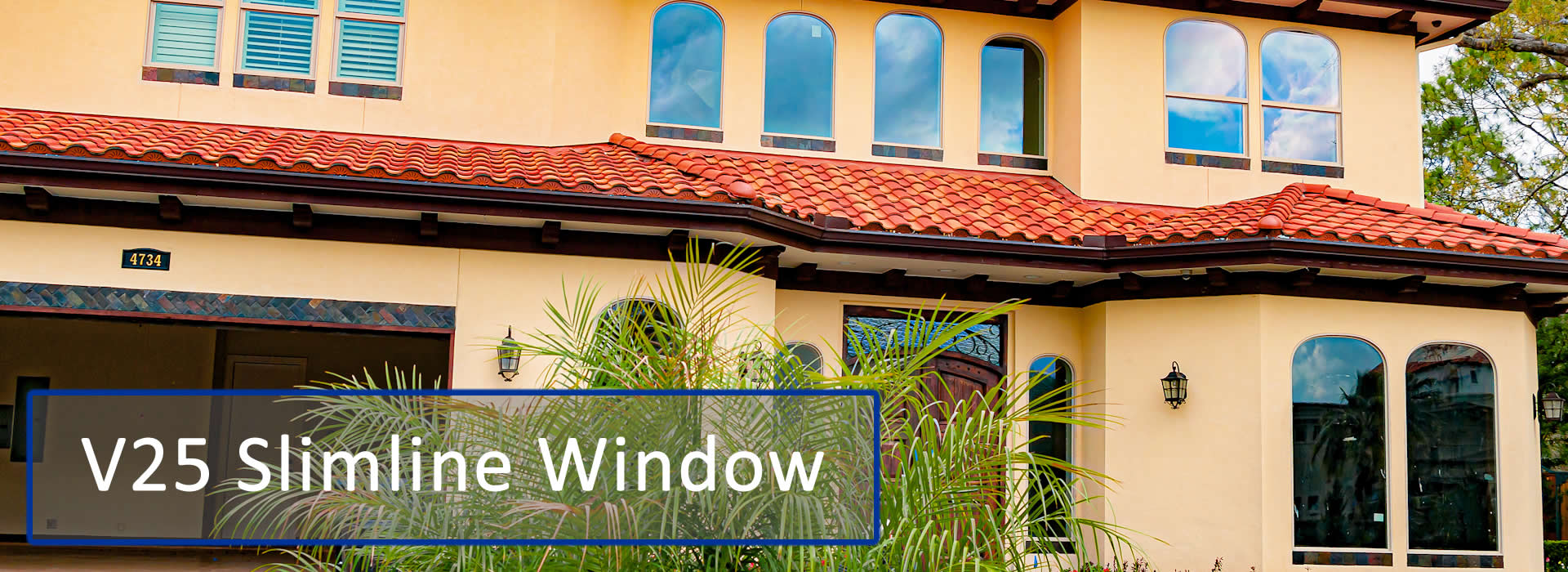

V25 Slimline Series Vinyl Windows for Installation in Dallas / Fort Worth

V25 Replacement windows

Our Sleek, Low Profile Frame

The Slimline Window Series is a perfect replacement or new construction window for those that are wanting a slim frame with maximum visible glass. Sleek, low profile frame design increases both your viewing area and light penetration. 3/4" Cardinal Low E 366 glass provides superior thermal and sound insulation.

Features & Benefits:
Dura Spacer® glass utilizes warm edge technology for increased energy savings.
Multi-chambered, aluminum-reinforced center bar for extra strength.
Heavy duty stainless steel balance system allows the sash to remain open in any position
New construction nailing fin for easy installation in new or room additions (optional).
"Colonial" window grids fit between the layers of glass so no cleaning is needed (optional).
Full frame depth to fit any standard window jamb making installation easier minimizing window opening customization.

Single Hung Window

COLOR OPTIONS

TOUGH COLORS AND FINISHES THAT ENHANCE YOUR HOME’S BEAUTY

We understand that it’s also important for a window frame, even if it’s the most energy-effcient available, to look attractive and add style to your home.

Standard interior and exterior colors are White, Almond or Clay ordering smooth clean lines to your home’s design.

Black on black coming soon!

Placeholder Picture
Placeholder Picture
Placeholder Picture

Single Hung Window

Single Hung Window

• Dual Sweep Lock. Exceeds forced entry requirements.
• ¾” OA Insulated glass “package” standard.
• Dual weather-stripping.
• Full 1½" integral nail fin included (removal optional).
• Full span interlocking and reinforced sashes.
• 3¼" Double wall frame for increased rigidity and thermal performance.
• Constant force balance standard.
• Straight, bay and bow mull available.
• Full family of Single Hung, Single Slider, 3-lite Slider and Picture Windows.
• LowE 366 glass standard.

Single Hung Window Specs

Picture Window

V25 Picture Window


• ¾” OA Insulated glass “package” standard.
• Double strength glass is standard for better thermal performance and sound reduction.
• Exterior glazed.
• Full 1½" integral nail fin included (removal optional).
• Compliments V25 single hung, slider and casement systems.
• 3¼" Double wall frame for increased rigidity and thermal performance.
• Integrated straight, bay and bow mull available.
• Optional two piece field mulling system and heavy duty mulls available
• Low E3 glass standard.

Picture Window Specs

Casement and Awning Window

V25 Awning Window

• ¾” OA Insulated glass “package” standard.
• Design provides water run-off and an extra weather-tight seal.
• All mitered sash designs lend pleasing lines for a beautiful appearance.
• Double strength glass is standard for better thermal performance and sound reduction.
• Multi-point locking provides extra weather tightness and security.
• Sash turns 90º for easy cleaning from inside the home.
• Optional two piece field mulling system and heavy duty mulls available.
• Bulb seal surrounds the sash for a tighter seal.
• Fold-down crank handle is standard.
• Low E3 glass standard.
• Straight, bay and bow mull available

Awning Window Specs

Sliding Window Horizontal

V25 Sliding Window


• ¾” OA Insulated glass “package” standard.
• Dual weather-stripping.
• Double strength glass is standard for better thermal performance and sound reduction.
• Full 1½" integral nail fin included (removal optional).
• Full span interlocking and reinforced sashes.
• 3¼" Double wall frame for increased rigidity and thermal performance
• Tandem roller for ease of operation and durability.
• Integrated straight, bay and bow mull available.
• Optional two piece field mulling system and heavy duty mull available.
• Low E3 glass standard.

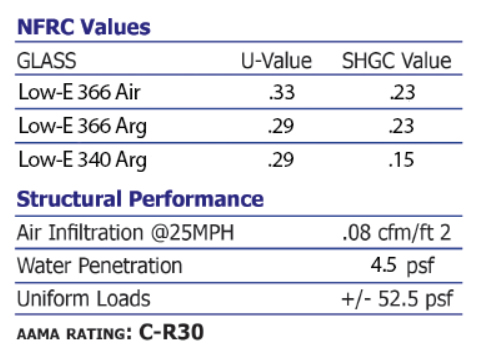

Sliding Window Specs

Go to Color OptionsGo to Glass OptionsGo to Grid Options
Download the Brochure in PDF Format
