EnergyCore Replacement Windows

EnergyCore™ Series Vinyl Windows for Installation in Dallas / Fort Worth

V31 replacement Windows

Energy-Efficient Window

When it’s time for new windows in your home, you have the opportunity to make your home more energy efficient, saving you money on heating and cooling costs as you reduce your impact on the environment. New windows also reduce outside noise and hot and cold rooms making your home all around more enjoyable.

While there are many choices, one stands out as energy efficient and sound reducing: The EnergyCore Window. There are many factors that influence how well a window performs, including the frame material, number of “lites” or window panes, LowE glass and the gasses and sealants between glass.

The EnergyCore Window is built with the most innovative technologies essential to a window’s overall energy performance. Combining AirCell™ frame technology with high performance ccomponents such as superior composite spacers and optional triple pane glass, gives you the most energy efficient, cost-saving window you can install in your home.

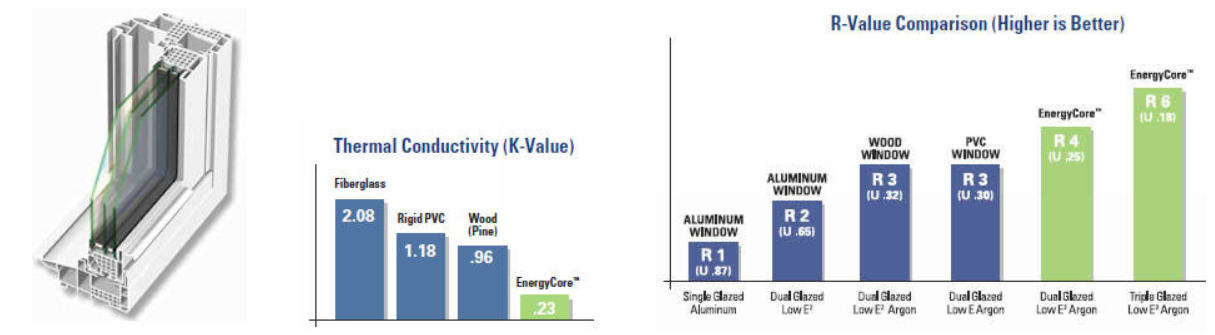

The energy performance of a window is measured in several ways. First, K-Value measures thermal conductivity, or rather how much energy an insulating material loses. In frames , a lower K-Value is better, because it means that the material reduces heat loss better. R-Value is a measurement of thermal efficiency and how well a material blocks the transference of energy. Higher R-Values mean better insulating ability.

EnergyCore Window

INNOVATIVE FRAME TECHNOLOGY

COLOR OPTIONS

TOUGH COLORS AND FINISHES THAT ENHANCE YOUR HOME’S BEAUTY

If you are looking to purchase or replace windows, you have color options. The exterior colors include white, almond, adobe, architectural bronze and black. **Exterior bronze is only available with a choice of white or adobe interior color. Black exterior is only available with a choice of white interior color. Two tone grid color options are available in bronze or black exterior and white or adobe interior.

Placeholder Picture
Placeholder Picture
Placeholder Picture

2-Tone Color Options Exterior Bronze and Interior White or Adobe.

Two Color
Two Color
Two Color

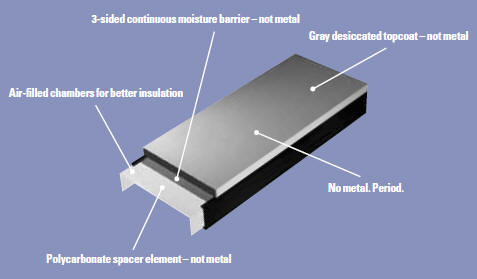

THE DURALITE WARM-EDGE System

In addition to a superior energy-efficient frame system, the EnergyCore Window uses the best spacer in its class.

Among the other high-performance components that make the EnergyCore Window the best in its class are the spacers that separate multiple panes of glass in the window’s construction.

Duralite™ next-generation spacer with warm-edge technology uses no metal. It substitutes metal with a unique laminated composite. As a result, Duralite reduces thermal conductivity up to 45 percent.

When compared with other spacers, Duralite offers the lowest U-Value rating, the best condensation resistance, and is the best energyefficient spacer system available.

Duralite spacers perform better in U-value tests than any other spacer.

Duralite Warm Edge

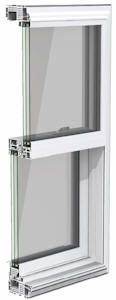

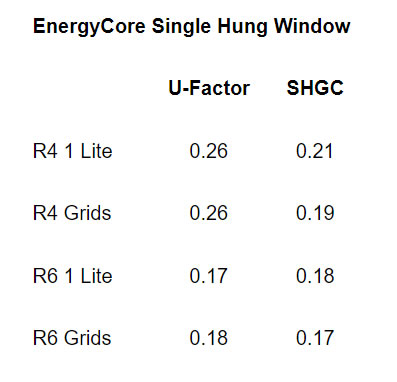

SINGLE HUNG TILT WINDOW (Pocket Sill)

Single Hung Window

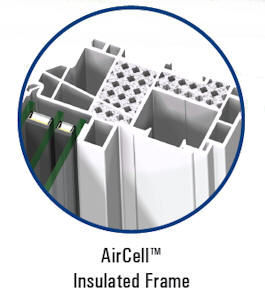

AirCell™ Insulated Frame provides full thermal insulation without voids to improve insulating performance 15% better than hollow vinyl window frames.

Warm-edge insulated glass unit improves thermal performance and helps reduce condensation.

Double strength glass is standard for better thermal performance and sound reduction.

¾” OA Insulated glass “package” standard

Interlocking meeting rails reduce air and water infiltration while providing added protection from forced entry.

Reinforced meeting rails provide superior durability and structural strength.

Double strength LowE 366 to provide optimal solar heat gain control to improve interior comfort and energy savings.

Lower tilt sash tilts inward to reach outside glass surfaces for cleaning ease from inside the home

Precision mitered fusion-welded corners provide superior structural strength and weather resistance.

Color-matched locking hardware features secure latches that are lead-free.

3-1/4” deep window frame for increased rigidity and thermal performance - also ideal for replacement use.

Easy operating sash balances are a superior constant force designed for commercial windows.

Dual weep sill drainage carries water away from the window while reducing air and dust penetration.

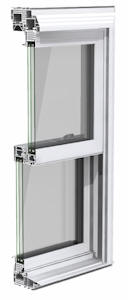

DOUBLE HUNG WINDOW (Sloped Sill)

Double Hung Window

AirCell™ Insulated Frame provides full thermal insulation without voids to improve insulating performance 15% better than hollow vinyl window frames.

Warm-edge insulated glass unit improves thermal performance and helps reduce condensation.

Double strength LowE 366 to provide optimal solar heat gain control to improve interior comfort and energy savings.

¾” OA Insulated glass “package” standard

Interlocking meeting rails reduce air and water infiltration while providing added protection from forced entry.

Reinforced meeting rails provide superior durability and structural strength.

High performance lowe3 glass standard provides optimal solar heat gain control to improve interior comfort and energy savings.

Lower & upper tilt sashes tilt inward to reach outside glass surfaces for cleaning ease from inside the home.

Precision mitered fusion-welded corners provide superior structural strength and weather resistance.

Color-matched locking hardware features secure latches that are lead-free.

3-1/4” deep window frame for increased rigidity and thermal performance - also ideal for replacement use.

Easy operating sash balances are a superior constant force designed for commercial windows.

Dual weep sill drainage carries water away from the window while reducing air and dust penetration.

PICTURE WINDOW

Single Hung Window


AirCell™ Insulated Frame provides full thermal insulation without voids to improve insulating performance 15% better than hollow vinyl window frames.

Warm-edge insulated glass unit improves thermal performance and helps reduce condensation.

Double strength LowE 366 to provide optimal solar heat gain control to improve interior comfort and energy savings.

¾” OA Insulated glass “package” standard

High performance lowe3 glass standard provides optimal solar heat gain control to improve interior comfort and energy savings.

Precision mitered fusion-welded corners provide superior structural strength and weather resistance.

3-1/4” deep window frame for increased rigidity and thermal performance - also ideal for replacement use.

Sliding Window Specs

CASEMENT WINDOW

Casement Window

AirCell™ Insulated Frame provides full thermal insulation without voids to improve insulating performance 15% better than hollow vinyl window frames.

Warm-edge insulated glass unit improves thermal performance and helps reduce condensation.

Double strength LowE 366 to provide optimal solar heat gain control to improve interior comfort and energy savings.

¾” OA Insulated glass “package” standard

High performance lowe3 glass standard provides optimal solar heat gain control to improve interior comfort and energy savings.

Easy operating hardware with nested crank handle adds aesthetic appeal and provides smooth, easy sash operation

Multi-point locking hardware secures frame and sash for a weather-tight fit and superior security

Precision mitered fusion-welded corners provide superior structural strength and weather resistance.

3-1/4” deep window frame for increased rigidity and thermal performance - also ideal for replacement use.

Multiple weatherstrip rows helps reduce air and water infiltration while improving exterior noise control

AWNING WINDOW

Awning Window

AirCell™ Insulated Frame provides full thermal insulation without voids to improve insulating performance 15% better than hollow vinyl window frames.

Warm-edge insulated glass unit improves thermal performance and helps reduce condensation.

Double strength LowE 366 to provide optimal solar heat gain control to improve interior comfort and energy savings.

¾” OA Insulated glass “package” standard

High performance lowe3 glass standard provides optimal solar heat gain control to improve interior comfort and energy savings.

Easy operating hardware with nested crank handle adds aesthetic appeal and provides smooth, easy sash operation

Multi-point locking hardware secures frame and sash for a weather-tight fit and superior security

Precision mitered fusion-welded corners provide superior structural strength and weather resistance.

3-1/4” deep window frame for increased rigidity and thermal performance - also ideal for replacement use.

Multiple weatherstrip rows helps reduce air and water infiltration while improving exterior noise control

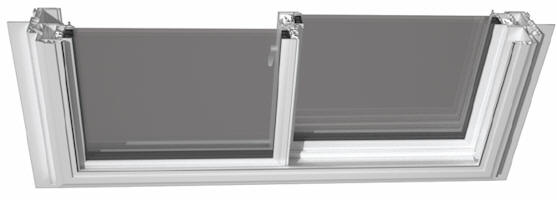

SLIDING WINDOW

AirCell™ Insulated Frame provides full thermal insulation without voids to improve insulating performance 15% better than hollow vinyl window frames.

Warm-edge insulated glass unit improves thermal performance and helps reduce condensation.

Double strength LowE 366 to provide optimal solar heat gain control to improve interior comfort and energy savings.

Interlocking meeting rails reduce air and water infiltration while providing added protection from forced entry.

Reinforced meeting rails provide superior durability and structural strength.

High performance lowe3 glass standard provides optimal solar heat gain control to improve interior comfort and energy savings.

¾” OA Insulated glass “package” standard

Precision mitered fusion-welded corners
provide superior structural strength and weather resistance.

Color-matched locking hardware features secure latches that are lead-free.

3-1/4” deep window frame for increased rigidity and thermal performance - also ideal for replacement use.

Easy operating sash balances are a superior constant force design to operate the sash with ease to any open position.

Dual weep sill drainage carries water away from the window while reducing air and dust penetration.

Placeholder Picture
